Creating 9-Patch Textures in SDL - Game DevLog Series #2

Last week I wrote a bit about everything and my progress so far. I just want to continue this series and write loosely about my experience in writing my own little game engine.

What is working right now:

• Game-Loop
• Command-Pattern  (described here: Link)
• Random Map Generation with Noise (FastNoise)
• "Infinite"-Map with Chunks which get rendered when you're near.
• Fast text rendering with sprite sheet
• *.tmx/xml importer for maps made with Tiled
• Camera movement on the map (of course)

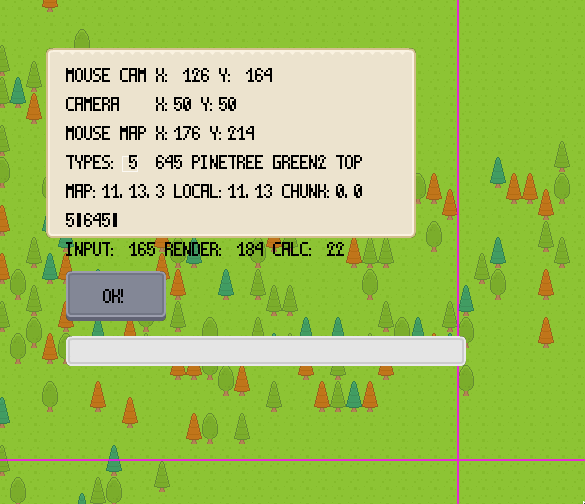

This week I worked a bit on the GUI. I really was not looking forward to this, but there comes a time you just need some buttons, health-bars etc.

At first I was thinking of just taking a "ready" to use GUI-Library. But I was thinking I don't need everything they provide.

Here is a little list of SDL Gui Libraries so you don't have to google them... (write in the comments if you've found some more)

• https://github.com/actsl/kiss_sdl
• https://github.com/wjakob/nanogui
• https://github.com/kallisti5/guisan
• https://github.com/mozeal/SDL_gui

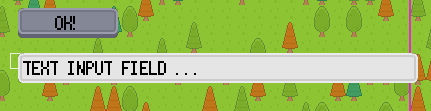

So I went with my own implementation. Currently I have some basics functionality, creating layout containers (which can rearrange their child elements), buttons and also an text input field.

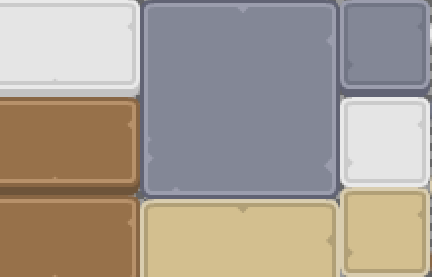

Right now I was working on an 9-Patch texture for my UI-Elements. Basically you have a texture like:

And then you patch them all together to an button with your desired width and height.

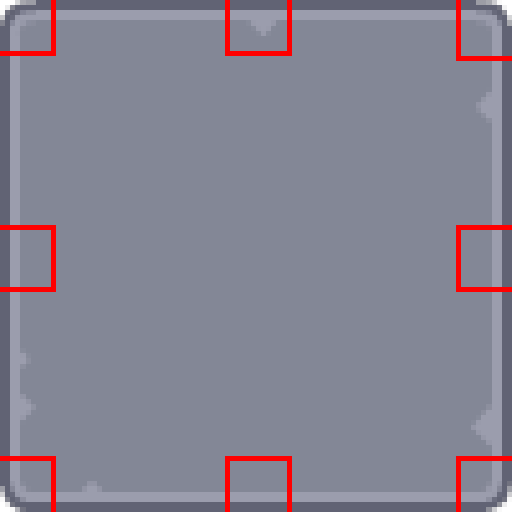

For the corners and edges the coordinates are like this:

//CORNERS
    int x_np = ninePatch->x;
    int y_np = ninePatch->y;

    int x_r = ninePatch->w - nine_patch_tile_s + x_np;
    int y_bot = ninePatch->h - nine_patch_tile_s + y_np;

    int xw_tile = x_np + ((ninePatch->w/2) - (tile_size / 2));
    int yh_tile = y_np + ((ninePatch->h/2) - (tile_size / 2));

    src_rects[NW].x = x_np;
    src_rects[NW].y = y_np;

    src_rects[N].x = xw_tile;
    src_rects[N].y = y_np;

    src_rects[NE].x = x_r;
    src_rects[NE].y = y_np;

    src_rects[E].x = x_r;
    src_rects[E].y = yh_tile;

    src_rects[SE].x = x_r;
    src_rects[SE].y = y_bot;

    src_rects[S].x = xw_tile;
    src_rects[S].y = y_bot;

    src_rects[SW].x = x_np;
    src_rects[SW].y = y_bot;

    src_rects[W].x = x_np;
    src_rects[W].y = yh_tile;

    src_rects[CENTER] = {xw_tile, yh_tile, tile_size, tile_size};

with:

SDL_Rect src_rects[9]{};

enum orientation { ///< clockwise then center
    NW,
    N,
    NE,
    E,
    SE,
    S,
    SW,
    W,
    CENTER
};

I put this all in a class called NinePatchDrawable. Do this at your liking, my NinePatchDrawable has a Texture and what I do is I check if I need a resize or if the texture has never been created, I then render the different little edges on a texture. I do it like this:

    target_texture->setBlendMode(SDL_BLENDMODE_BLEND);

    auto *sdl_renderer = renderer->getSDLRenderer();
    auto *sdl_target = target_texture->getSDLTexture();
    auto *sdl_src = src_texture->getSDLTexture();

    //Setting Render Target
    if(SDL_SetRenderTarget(sdl_renderer, sdl_target) < 0) {
        spdlog::error("[NinePatchDrawable] could not set texture as rendering target");
    }
    SDL_RenderClear(sdl_renderer);

    calc_size();

    SDL_Rect dest;
    dest.w = step_x;
    dest.h = step_y;

    for (int y_l = 0; y_l < y_max_step ; ++y_l) {
        for(int x_l = 0; x_l < x_max_step; ++x_l) {
            dest.x = step_x * x_l;
            dest.y = step_y * y_l;
            orientation o = get_orientation(x_l, y_l);
            SDL_RenderCopyEx(sdl_renderer, sdl_src,
                             &src_rects[o], &dest,
                             0.0, nullptr, SDL_FLIP_NONE);

        }
    }

    SDL_SetRenderTarget(sdl_renderer, nullptr); // reset Render Target
    spdlog::info("[NinePatchDrawable] rendering ninePatch");

There are different, and I bet better methods of doing this. If you do this in any other way just comment this blog post :) I'm really happy for your feedback.

Future Ideas are that you also define a tile with a width=1 for the edges so you can size the textures with pixel resolution. I have to define a button with a multiple of the tile size of my edges/corners. But for me that's enough :) I don't want to over engineer this, If I really don't need it.

So if you like this series to continue please write a comment below :)

The Texture I used can be found on https://www.kenney.nl/  he does a great job and I use the textures from him for prototyping. Really awesome work there.

9-Patch Android: https://developer.android.com/studio/write/draw9patch

More on 9-Patches for Android: https://developer.android.com/guide/topics/graphics/drawables#nine-patch
